My modular synth project yusynth #000

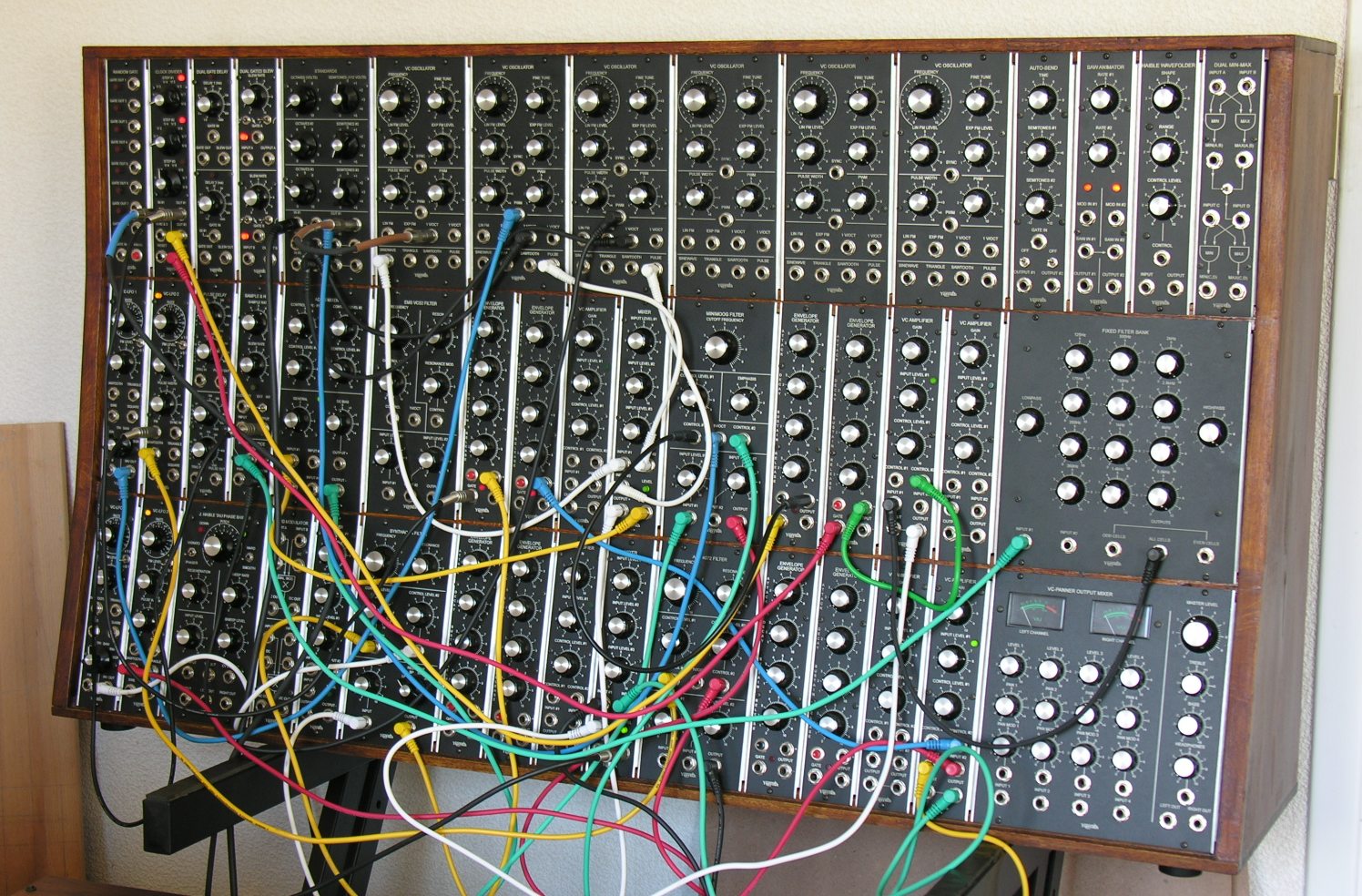

This page is dedicated to my new and ever-growing project of building a modular synthesizer.
Right now, I see no limit to it, it may grow ever and ever... That's what makes all the fun !
Hall of fame
Most recent stuff : A bit more about the cabinet
During the past years some people around the word have built yusynth based modulars. Here are some beautiful achievements.



Wanna hear the beast ? Then follow this link :
Now Soundtronics.co.uk provides PCB and kits for yusynth modules.
and bigbluewave.co.uk provides MU factor front plates

Filters and resonators

Steiner VCF : two different versions of this wonderful filter



ARP VCF :
a clone of the 4072 ARP filter


Minimoog VCF :
the must have filter


Diode VCF :

the sound of the famous EMS filter



JH-Tau-Phaser :
a brilliant design by Jürgen Haible



Fixed resonant filter bank:
A module for shaping timbres and resonances...


Signal and CV generators


VC-LFO:
two versions of  a  voltage controlled LFO


VCO:
the necessary module

Random module :
Noise generator and Sample & Hold

CV standard :

scaled voltage reference giving octaves and semitones


ADSR :
classical but efficient design

Auto-bend:

briefly gliding pitch on note attacks

Dual Gated Slew : for gated portamento and glide effects

Quadrature-LFO:

a VC-LFO with phase shifted sinewaves (0°,90°,180°,270°)

Signal processors and modifiers
MinMax


MinMax :
a not so common module for voltage processing or wave distorsion


Wavefolder :
a module for generating overtones


Dual Balanced Modulator :
a dual ring modulator

Saw-animator :
Saw phase shifters


Simple VCA :
a simple though efficient VCA

audio/CV Mixer:

2 versions of signal/CV mixer


Output mixer & VC-panner:
This an utility module, it is an audio mixer with tone control and headphone output. Each of the 4 voices has its own VC-panner.

Control/GATE generators and modifiers

Dual Gate Delay
:
Gate delay and slew up



Dual pulse Delay

Random gates :

8 gate signals in a random sequence

Clock divider:
a triple divider to drive sequencers


Comparators: generate GATE and PULSES depending on an input signal and a threshold


Boolean Logic:

Dual AND gate, single OR gate, NOT gate



Sequential Router :
To be used with sequencers






A note to readers:

All electronic projects and designs presented on this web site, or associated web sites should be considered dangerous if not lethal if not used safely. When working on projects based on these designs, use extreme care to ensure that you do not come into contact with mains AC voltages or high voltage DC. If you are not confident about working with mains voltages, or high voltages, or you are not legally allowed to work with mains voltages, or high voltages, you are advised not to attempt work on them. The author, host, and all people associated with these web pages disclaim any liability for damages should anyone be killed or injured while working on these projects, or projects based on these designs, or any other project or design presented on these web pages and any associated web pages. The author, host, and all people associated with these web pages also disclaim any liability for projects, or projects based on these designs, or any other project or design presented on these web pages and any associated web pages when used in such a way as to infringe relevant government regulations and by-laws.

All circuits, schematics, printed circuit board, panel design and associated data published on this site can be used for private use only.
