Description

The mixer is an utility module which goal is to combine signals or control voltages from various sources. I have designed to versions :

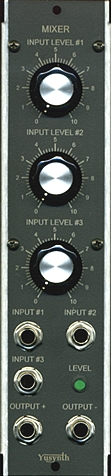

  • one that fits in 1U panel with three inputs with adjustable level, a level LED, two outputs (one inverted);

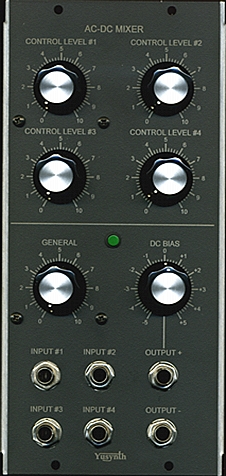

  • the second fits in 2U panel with four inputs with adjustable level, a general level control, a DC bias control, a level LED, two outputs (one inverted);
Both are based on a unique PCB.


The DIY builders' gallery
Here are the photographs of the yusynth Mixers modules built by other synth geeks around the world.
Thank you  guys for sending me these nice photos.



Name :

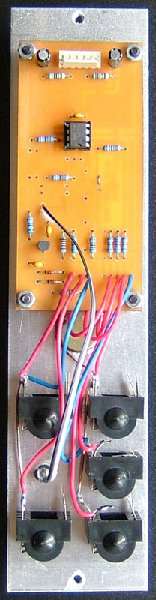

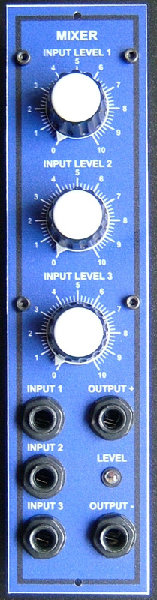

Pseudo : Sebo
 Modular project :
Location : Argentina

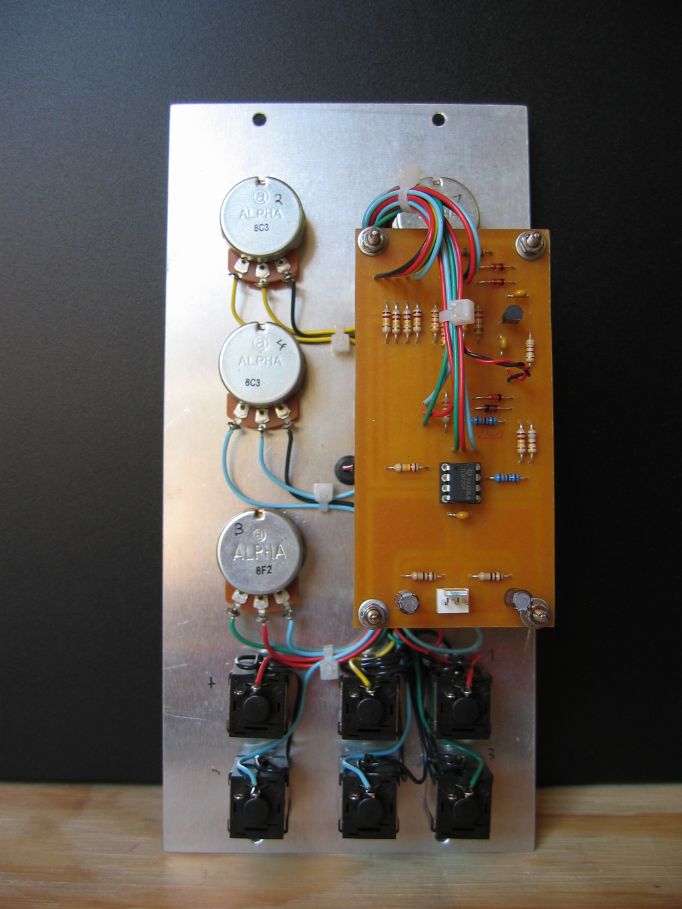

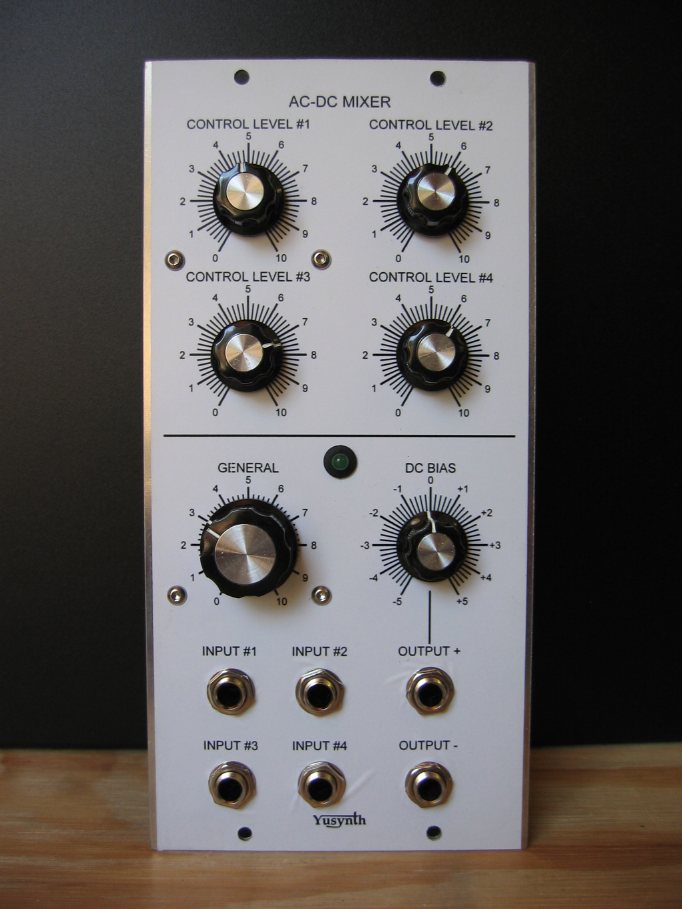

Website : http://www.cosaquitosenglobo.com.ar 		Name : Zarko
